BLW Steeple Cab Electrics

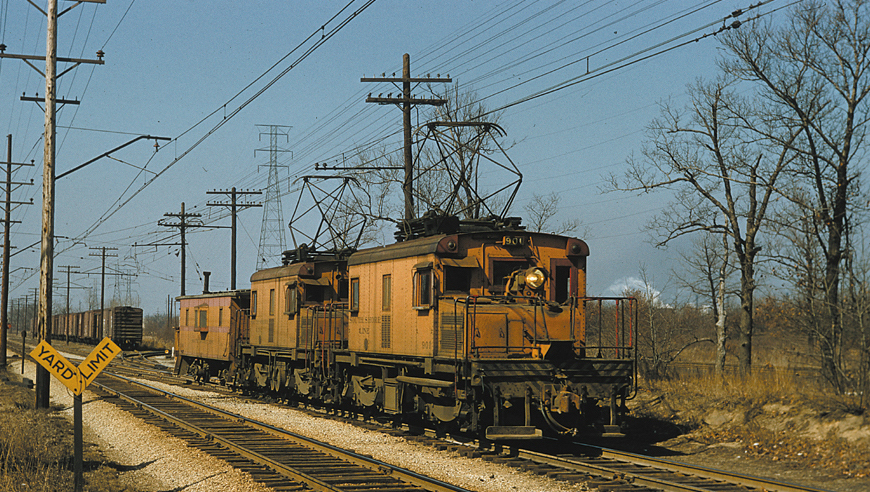

BLW Steeple Cab Electrics South Shore #1003 at Shops Yard (Gary, IN) on 10 March 1956. (John F. Humiston photo / Richard Humiston collection)
Baldwin Locomotive Works was a leading builder of locomotives for more than 130 years. The Pennsylvania-based manufacturer had two plants, one in Philadelphia (built 1835) and the other in Eddystone (1907). Collectively, they produced some of this nation's most notable steam-driven and diesel-electric machines to ever grace the steel rail. During the early 1900s, the Philadelphia facility was also the epic center for electric freight motor construction. Initially, BLW-built steeple cabs of the 1890s bore a close resemblance to electric freight motors bearing the GE builder plate. However early in the 1900s, the Baldwin steeple cab underwent a major redesign that encompassed a much larger center cab, along with two short stubby-looking end hoods, which generally contained air compressors, blowers, blower motors and sand boxes. The center cab typically housed one or two operator control stations, meter board, gauges and other electrical gear. The change was in direct contrast to the the long sloping end hoods of GE models, and the reconfiguration of the car-body made it easier to distinguish BLW-built models from those with an Erie builder plate. It was around the same period that Baldwin adopted a model classification system predicated generally on locomotive weight and horsepower rating: Class A -- early 30 to 40 tons (rated at 300 horsepower) Class B -- 45 to 55 tons (rated at 400 horsepower) Class B-1 -- 41.5 to 50 tons (rated at 400 horsepower) Class D -- 59 to 65 tons (rated at 500 to 1000 horsepower) Class E -- 80 to 97 tons (rated at 1440 horsepower) Baldwin relied heavily on Westinghouse for the supply of electrical apparatus, traction motors and control systems. Traction motors could be sized for 600, 750, 1200 or 1500 volts, depending on the customer specifications. The same applies to trolley poles, pantographs or third-rail pick-up shoes. The Baldwin / Westinghouse relationship which had began during the years of early steam engine production, lasted until the Eddystone plant ceased locomotive production in 1956. Another appreciable difference, Baldwin-built steeple cabs were most commonly relegated to small railroads or interurban lines; seldom were they found working in what might be deemed a heavy industrial setting. Footnote: A selling feature of EMD's celebrated 1350-hp FT of 1939 was a "building block" approach to achieving a 2700-hp or 4050-hp locomotive. Interestingly, a lash-up of two or three m/u'd Baldwin-built Class "E" steeple-cabs had surpassed that goal thirteen years earlier. Moreover, EMD would not introduce the 1500-hp GP7 until 1949.

Somebody's Large Digital Image Here

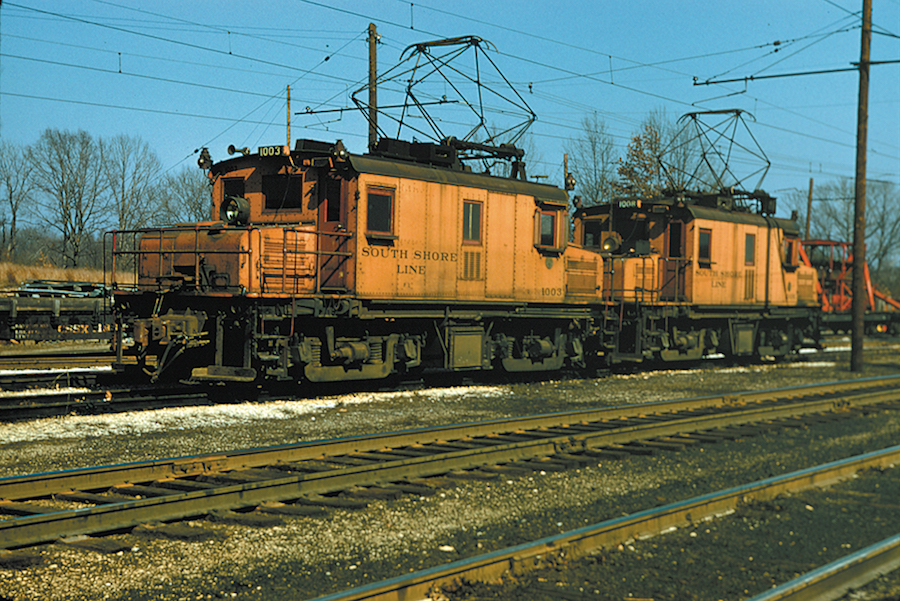

South Shore #1003 at Shops Yard (Gary, IN) on 10 March 1956. (John F. Humiston photo / Richard Humiston collection)

Baldwin Locomotive Works was a leading builder of locomotives for more than 130 years. The Pennsylvania-based manufacturer had two plants, one in Philadelphia (built 1835) and the other in Eddystone (1907). Collectively, they produced some of this nation's most notable steam-driven and diesel-electric machines to ever grace the steel rail. During the early 1900s, the Philadelphia facility was also the epic center for electric freight motor construction.

Initially, BLW-built steeple cabs of the 1890s bore a close resemblance to electric freight motors bearing the GE builder plate. However early in the 1900s, the Baldwin steeple cab underwent a major redesign that encompassed a much larger center cab, along with two short stubby-looking end hoods, which generally contained air compressors, blowers, blower motors and sand boxes. The center cab typically housed one or two operator control stations, meter board, gauges and other electrical gear. The change was in direct contrast to the the long sloping end hoods of GE models, and the reconfiguration of the car-body made it easier to distinguish BLW-built models from those with an Erie builder plate.

It was around the same period that Baldwin adopted a model classification system predicated generally on locomotive weight and horsepower rating:

Class A -- early 30 to 40 tons (rated at 300 horsepower)

Class B -- 45 to 55 tons (rated at 400 horsepower)

Class B-1 -- 41.5 to 50 tons (rated at 400 horsepower)

Class D -- 59 to 65 tons (rated at 500 to 1000 horsepower)

Class E -- 80 to 97 tons (rated at 1440 horsepower)

Baldwin relied heavily on Westinghouse for the supply of electrical apparatus, traction motors and control systems. Traction motors could be sized for 600, 750, 1200 or 1500 volts, depending on the customer specifications. The same applies to trolley poles, pantographs or third-rail pick-up shoes. The Baldwin / Westinghouse relationship which had began during the years of early steam engine production, lasted until the Eddystone plant ceased locomotive production in 1956.

Another appreciable difference, Baldwin-built steeple cabs were most commonly relegated to small railroads or interurban lines; seldom were they found working in what might be deemed a heavy industrial setting.

Footnote: A selling feature of EMD's celebrated 1350-hp FT of 1939 was a "building block" approach to achieving a 2700-hp or 4050-hp locomotive. Interestingly, a lash-up of two or three m/u'd Baldwin-built Class "E" steeple-cabs had surpassed that goal thirteen years earlier. Moreover, EMD would not introduce the 1500-hp GP7 until 1949.

* * * Baldwin-built Steeple Cab Portfolio * * *

New: 1 September 2021	Formatted by: R. Craig

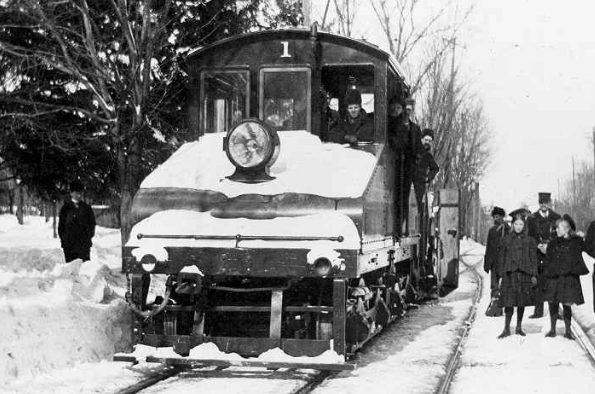

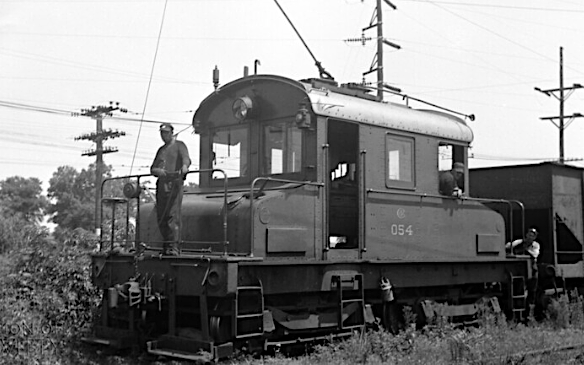

Class A: Metropolitan Railway (Toronto) #1 The first production electric freight motor to bear the Baldwin-Westinghouse imprint was Metropolitan Street Railway of Toronto #1. Resembling one of the chief competitor's steeple-cabs with long sloping end hoods; the 22.5-ton electric was built in 1899. (Photographer and date of image unknown.)	Class A: Capitol Transit #054 Capitol Transit #054 was a 27-ton electric motor that reflects Baldwin- Westinghouse's shift from producing locomotives with long sloping end hoods in favor of creating a larger cab area. Built in 1906, this freight motor was originally delivered to the Hoboken Shore Railway as #3. (Dave Witty collection, photographer unknown)

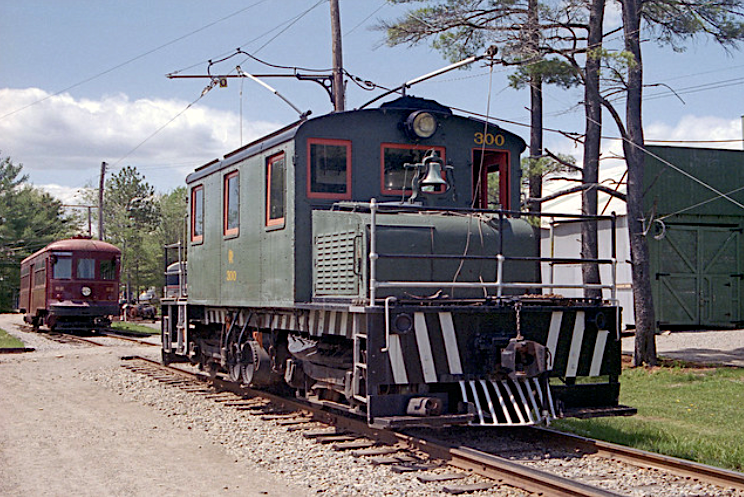

Class B: Jamestown Westfield & Northwestern Jamestown Westfield & Northwestern #400 typifies a standard Class "B" Baldwin electric of 1914/1915. The locomotive rode on rigid-bolster trucks, with type 582 FD5 traction motors, each with a 100-hp rating; the T/Ms were direct geared and axle mounted. Power for the 36-foot-long freight motor used three-phase, 600-volt AC from a single trolley pole. (Photographer unknown / Tom Starr collection)	Class B: Oshawa Railway #300 Oshawa Railway's locomotive roster consisted of ten freight motors; only two of which came direct from the manufacturer. The others were acquired second-hand or built by OR's own shop. The 50-ton #300 was built by BLW in 1920 and delivered to the Oshawa Rwy in 1923, after the original buyer defaulted. It remained in service for more than four decades before going to the Seashore Trolley Museum. (Dave Pirmann photo)

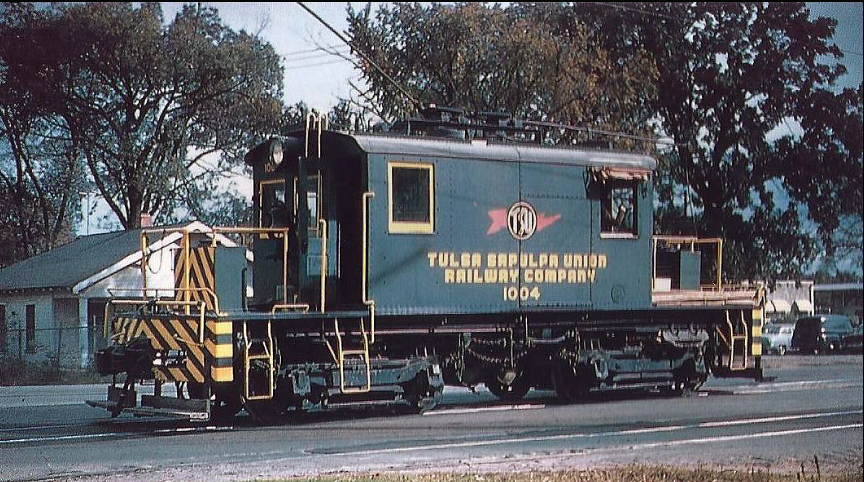

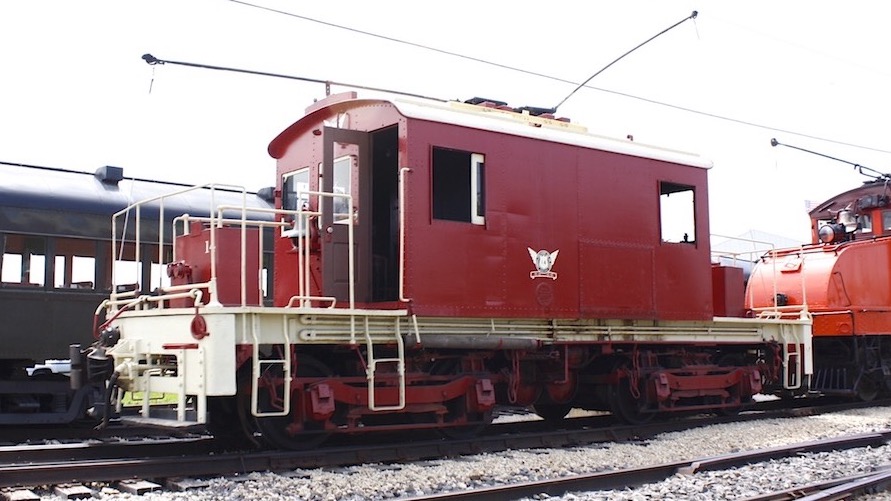

Class B-1: Tulsa Sapulda Union By the late 1920s, the market for new electric freight motors experienced a significant decline. The Baldwin-Westinghouse reaction took the form of a scaled-back version of its standard steeple cab. Tulsa Sapulpa Union #1004 illustrates the boxy appearance and lack of short end hoods. TSU was built in 1928 for Sand Springs railroad. (Photo courtesy of TransPress NZ)	Class B-1: Cornwall Street Railway #14 Baldwin produced only thirteen Class B-1 freight motors (9 for CSR and 4 IC). The lack of short-end hoods dictated relocation of mechanical equipment to inside the center cab. Prior to donning the red attire of CSR #14 had been owned by Springfield Railway. Built in 1929, CSR #14 now resides at the Illinois Railway Museum. (Tim Fennell photo)

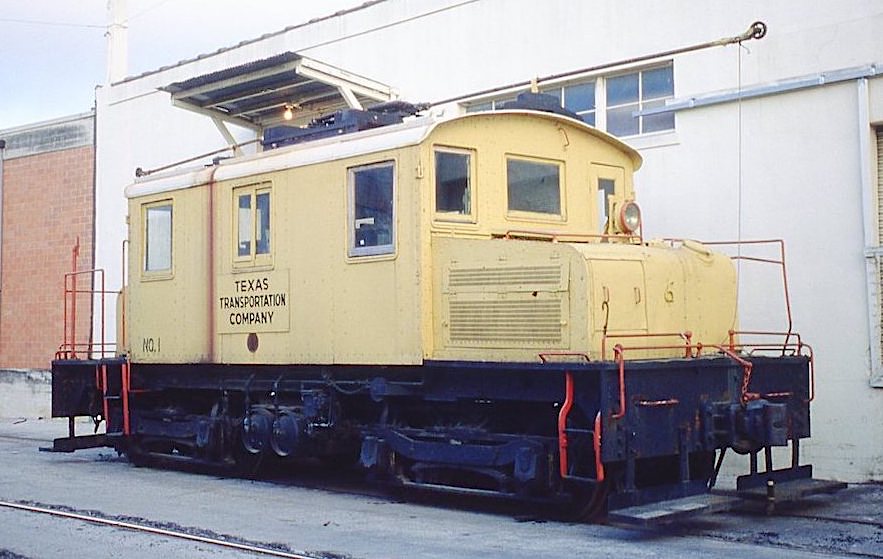

Class D: Texas Transportation #1 In-spite of its pale yellow, 60-ton Texas Transportation #1 has led a colorful existence starting as Chicago Milwaukee & St. Paul #10002. Built in December 1917, the switcher was one of the few BLW-built steeple cabs on the Milwaukee Road roster. Its other owners were: Monongahela-West Penn (#2000), City Lines of West Virginia, and Kaw City Kaw Valley #504. (Tom Hirsch photo)	Class D: Sacramento Northern #660 In 1928, Baldwin-Westinghouse delivered two 68-ton Class D freight motors #660 & 661 (nee 1060 & 1061) to Sacramento Northern. Designed for 600, 1200 & 1500-volt operation, the pair of BLW electrics were equipped with pantograph and third-rail shoes; they however could not M/U. The sure-footed Baldwins were driven by four 250-hp Westinghouse 583 traction motors. (Marty Bernard photo)
Class A: New Haven #4	Class E: Chicago South Shore #903

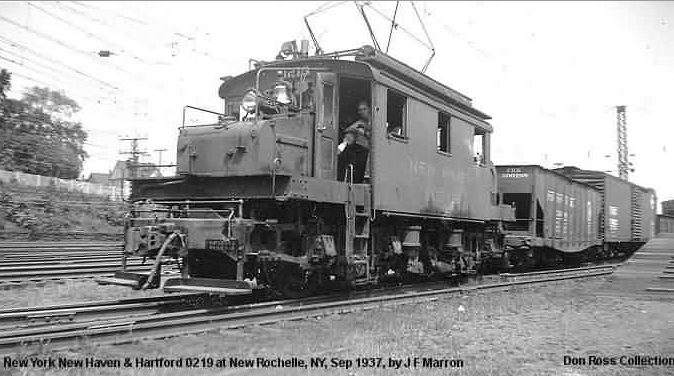

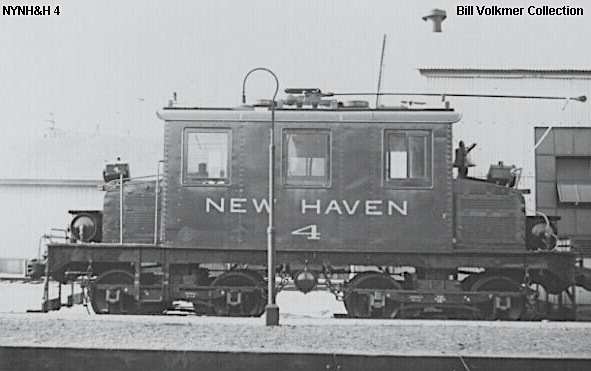

According to some accounts, the New Haven railroad operated one of the largest stables of electric freight motors, from small steeple cabs to 4000-hp rectifier locomotives. The two photos immediately above depict different types of Baldwin-built steeple cabs on the NH roster. Built in 1914, NH #4 was a modest 30-ton unit with 36" wheels (indicative of its low horsepower rating). The other NH freight motor was constructed three years earlier and tipped the scales at 80 tons, with a 520-hp output. Joshua Moldover provided this additional info. "With regard to Westinghouse/Baldwin-designed electrics (and the order is deliberate; Baldwin for most was to build the carbody, with Westinghouse being the primary designer, especially when it came to AC-powered locomotives), all but a small handful (from GE) of New Haven electric locomotives built before 1930 came from that combination of companies. Of course, after 1930 it was the other way around, with all but a handful coming from GE." (Both photos courtesy of Don Ross and his Don's Depot website)
Class E: Illinois Central #10003	Class E: Chicago South Shore #903

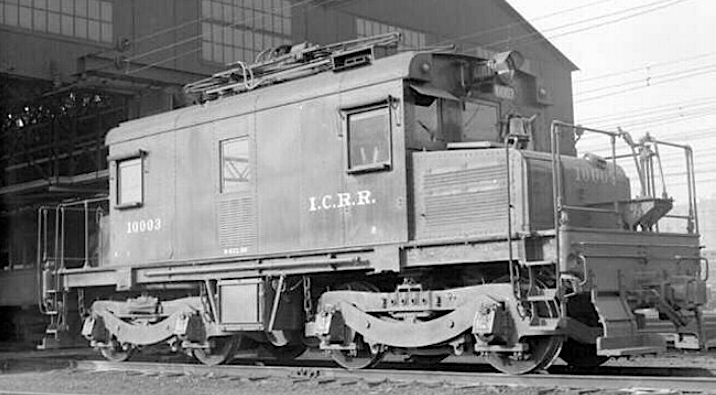

Based on several photo library and roster searches, the Baldwin-Westinghouse team built very few Class "E" freight motors. The two photos above were the only ones to surface during the hunt. Coincidently, the pictures are of the same locomotive; 97-ton Illinois Central #10003, which was sold to Chicago South Shore and became #903. The left scene depicts IC #1003 in Chicago (Otto Perry photo / courtesy Denver Public Library), while the other scene shows Chicago South Shore #903 at Goff Junction in Gary, Indiana. (John F. Humiston photo / Richard Humiston collection)
Notes & Credits: Reference sources: Classic Traction by William D. Middleton Interurban Era by William D. Middleton Norman Carlson, managing editor "First & Fastest," Shore Line Interurban Historical Society Don Ross' Don's Depot website
