General Electric 8500-hp Turbine "B" |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 28 January 2006 |

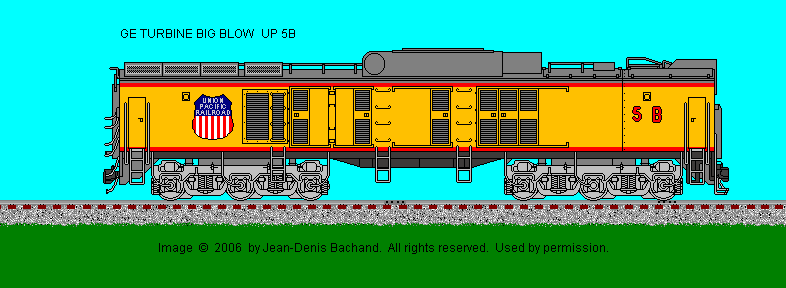

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: General Electric |
Engine: 15-stage Turbine |
| Bore & Stroke |
N/A |
| RPM (Maximum / Minimum) |
4860 / 3600 |
| Main Generator: GE - GT576C1 |
Horsepower: 8500 / 7000 |
| Gear Ratio: 74:18 |
Speed: 70 mph |
| Trucks: 6-Wheel |
Configuration: C-C |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: ? |
| Weight:551,720 lbs |
Traction Motors: GE 752 E3 (six) |
| Tractive Effort (starting) 212,312 lbs @ 25% |
Tractive Effort (continuous): 146,000 lbs @ 10.7 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GY 27 |
Alternator: GY27 |
| Air Brake: Westinghouse |
Model: 24RL |
| Air Compressor: Westinghouse |
Model: 3CDC |
| Quantity Built: 30
|
Dates: 7/1958 to 6/1961 |
| - |
- |
| Exterior Dimensions
| 8500-hp Turbine (Big Blow) "B" |
| Total Length |
63'-00" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
14'-06" |
| Height to Top Engine Hood |
16'-00" |
| Height to Top Cab Hood |
15'-11.5" |
| Cab Width |
10'-09.5" |
| Hood Width |
10'-00" |
| Top of Walkway |
N/A |
| Width of Walkway |
N/A |
| Center Bolster |
34'-02" |
| Leading Edge Front Truck to Front Pilot |
7'-02" |
| Trailing Edge Rear Truck to Rear Pilot |
7'-02" |
| Center of Lead Truck to Center of Trailing Truck |
48'-08" |
| Minimum Turning Radious |
21 degrees |
| -
| - |
| Fuel Oil: 3600 gallons
| Lubricating Oil: 190 gallons |
| Engine Cooling Water: 150 gallons
| Sand Capacity: 40 cu. ft. |
| Options: |
