Alco C-415 (DL415) |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 2 April 2005 |

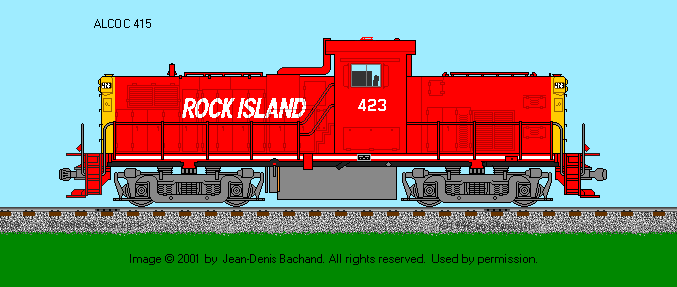

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: Alco and Dominion Engineering Works |
Engine: 4-cycle Model 251F V8 |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1025 / 375 |
| Main Generator: GE - GT581 |
1500 |
| Gear Ratio: 74:18 |
Speed: 66 mph |
| 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: Stuart |
| Weight: 240,000 lbs |
Traction Motors: GE 752 (Four) |
| Tractive Effort (starting) 60,000 lbs @ 25% |
Tractive Effort (continuous): 42,000 lbs @ 10 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: No |
| Auxilary Generator: GE |
Alternator: |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Westinghouse |
Model: 3CDC |
| Boiler Type: Optional |
Lbs/hr: -- |
| Quantity Built: 26
|
Dates: 6/1966 to 12/1968 |
| - |
 |

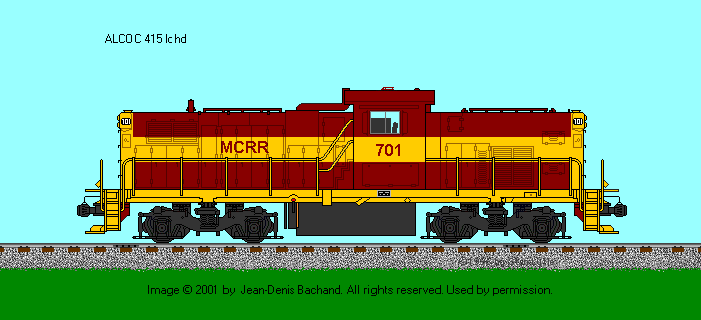

| Drawing by: Jean-Denis Bachand |
| - |
| - |
- |
| Exterior Dimensions
| C-415 |
| Total Length |
53'-08" |
| Pilot to Pilot |
44'-01" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-04" |
| Height to Top Engine Hood |
12'-09" |
| Height to Top Cab Hood |
15'-05" (std), 14'-06" (low), 16'-05" (high) |
| Cab Width |
10'-03" |
| Top Walkway Width |
11'-10" |
| Walkway Width |
5'-01" |
| Engine Hood Width |
10'-02" |
| Center Bolster |
31'-00" |
| Center Front Truck to Front Pilot |
8'-01" |
| Center Rear Tucrk to Rear Pilot |
8'-01" |
| Distance between Truck Centers |
37'-04" |
| Minimum Turning Radious |
21 degrees |
| -
| - |
| Fuel Oil: 1000
| Lubricating Oil: 180 |
| Engine Cooling Water: 150
| Sand Capacity: 26 cu. ft. |
| Options: |
| - |
 |

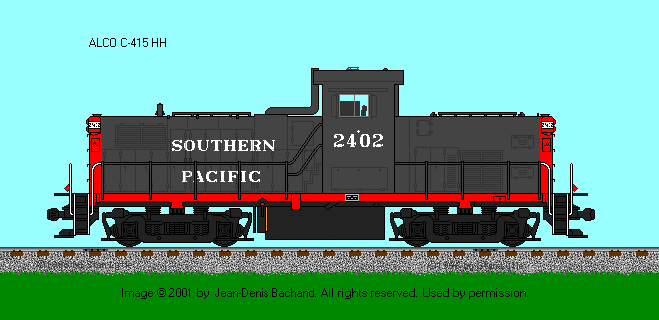

| Drawing by: Jean-Denis Bachand |
Reference Sources:
- Railroad Model Craftsman, March 1985
- Railfan & Railroad, September 1984
- Railroad Modeler, May 1978
|
