MLW 535E |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 20 May 2005 |

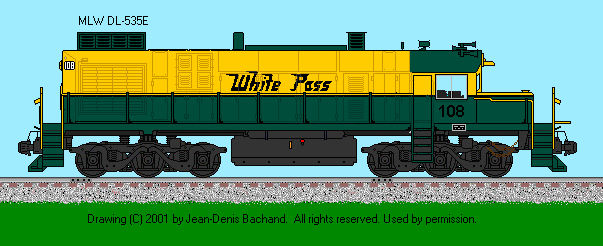

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: Alco Products |
Engine: 4-cycle Model 251D 6L |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1100 / 400 |
| Main Generator: GE - 581E |
Horsepower: 1200 |
| Gear Ratio: ? |
Speed: 60 mph |
| Tri-Mount (6-Wheel) |
Configuration: C-C |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: ? |
| Weight: 246,500 lbs |
Traction Motors: GE 764b12 (six) |
| Tractive Effort (starting) 35,600 lbs @ 25% |
Tractive Effort (continuous): 52,530 lbs @ 25 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GMG144 |
Alternator: -- |
| Air Brake: Westinghouse |
Model: 26L |
| Compressor: Westinghouse |
Model: 3CD |
| Boiler Type: -- |
Lbs/hr: -- |
| Quantity Built: 7
|
Dates: 5/1969 |
| - |
- |
| Exterior Dimensions
| DL-535E |
| Total Length |
53'-05" |
| Pilot to Pilot |
37'-03" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
11'-00" |
| Height to Top Engine Hood |
12'-08" |
| Height to Top Cab Hood |
13'-00" |
| Cab Width |
9'-07" |
| Top Walkway Width |
8'-02" |
| Walkway Width |
5'-00" |
| Engine Hood Width |
9'-06" |
| Center Bolster |
37'-08" |
| Center Front Truck to Front Pilot |
8'-03" |
| Center Rear Tucrk to Rear Pilot |
8'-03" |
| Distance between Truck Centers |
45'-08" |
| Minimum Turning Radious |
21 degrees |
| -
| - |
| Fuel Oil: 1000
| Lubricating Oil: 143 |
| Engine Cooling Water: 199
| Sand Capacity: 10 cu. ft. |
| Options: "Hivernisation" |
Reference Sources:
- MLW Design Data
- WP&Y Mechanical Data Book
|
