General Electric ES4400CW

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND

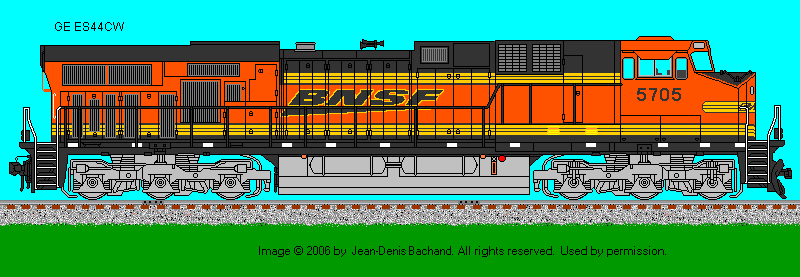

New: 12 February 2006 Drawing by: Jean-Denis Bachand
-
Engine Builder: General Electric Engine: 4-cycle Model 7HDL12
Bore & Stroke 9.8" X 12.6"
RPM (Maximum / Minimum) 1050 / 440
Main Generator: GE - GMG196A Horsepower: 4400
Gear Ratio: 83:20 Speed: 70 mph
Trucks: 6-Wheel Configuration: Hi-Adhesion C-C
Traction Motor Blowers: Mechanical Driven (2) Model: ?
Weight: 425,000 lbs Traction Motors: GE GEB13 (Six)
Tractive Effort (starting) 180,000 lbs @ 35% adhesion Tractive Effort (continuous): 145,000 lbs @ 13.7 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GYA30A Alternator: GYA30A
Air Brake: Westinghouse Model: 26L
Air Compressor: Westinghouse Model: 3CDC
Quantity Built: 199 Dates: 6/1993 to Present
- -
Exterior Dimensions ES4400CW
Total Length 69'-04"
Wheel Diameter 42"
Truck Wheel Base 13'-02"
Height to Top Engine Hood 15'-07.5"
Height to Top Cab Hood 15'-05.5"
Cab Width 10'-03"
Hood Width 9'-11"
Top of Walkway 9'-05.5"
Width of Walkway 5'-05"
Center Bolster 46'-03"
Leading Edge Front Truck to Front Pilot 1'-07.5"
Trailing Edge Rear Truck to Rear Pilot 1'-07.5"
Center of Lead Truck to Center of Trailing Truck 59'-05"
Minimum Turning Radious 21 degrees
- -
Fuel Oil: 5500 gallons Lubricating Oil: 410 gallons
Engine Cooling Water: 380 gallons Sand Capacity: 55 cu. ft.
Options: Steerable Trucks and DC Traction motots (752AH)
Reference Sources:
  • Model Railroader, November 2004
  • Trains, September 1999
  • Rail Classics, Volume 24 #4 (July/August 1995)
  • Diesel Locomotives by Greg McDonnell
