BBD HR-616 |
 |
| Data Sheet Information Compiled by: Jean-Denis Bachand |
| New: 13 April 2005 |

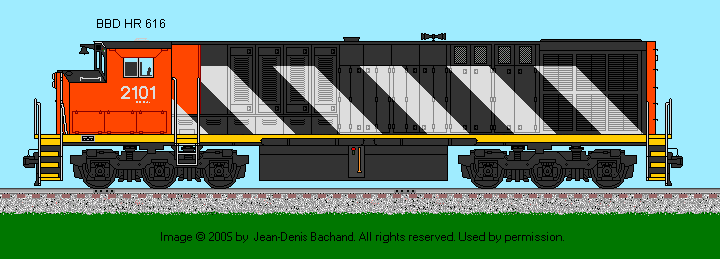

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: Alco Products |
Engine: 4-cycle Model 251G V16 |
| Bore & Stroke |
9" X 10.5" |
| RPM (Maximum / Minimum) |
1100 / 400 |
| Main Generator: GE GTA11P |
Horsepower: 3000 |
| Gear Ratio: 74:18 |
Speed: 65 mph |
| TrucksL ZWT-3 (6-Wheel) |
Configuration: C-C |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: Sturt |
| Weight: 420,000 lbs |
Traction Motors: GE 752 (Six) |
| Tractive Effort (starting) 90,000 lbs @ 20% |
Tractive Effort (continuous): 75,800 lbs @ 12 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: Yes |
| Auxilary Generator: GE GY27 |
Alternator: GE GT566 |
| Air Brake: Westinghouse |
Model: 26LUM |
| Compressor: Westinghouse |
Model: 3CDC |
| Quantity Built: 20
|
Dates: 2/1982 to 8/1982 |
| - |
- |
| Exterior Dimensions
| HR-616 |
| Total Length |
69'-11" |
| Pilot to Pilot |
61'-04" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
11'-02" |
| Height to Top Engine Hood |
14'-10" |
| Height to Top Cab Hood |
15'-05" |
| Cab Width |
10'-01" |
| Top Walkway Width |
9'-06" |
| Walkway Width |
5'-01" |
| Engine Hood Width |
10'-03" |
| Center Bolster |
46'-09" |
| Center Front Truck to Front Pilot |
7'-00" |
| Center Rear Tucrk to Rear Pilot |
7'-00" |
| Distance between Truck Centers |
54'-06" |
| Minimum Turning Radious |
21 degrees |
| -
| - |
| Fuel Oil: 2000
| Lubricating Oil: 330 |
| Engine Cooling Water: 300
| Sand Capacity: 56 cu. ft. |
Options:
- Full Width Carnody with taper
- Wheel slip control
- Automatic Cooling System Dump Valve
- Fully Automatic Transition
|
Reference Sources:
- Canadian National Mechanical Data Book
- MLW Design Data
|
