MLW RS-10 (DL700)

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: Jean-Denis Bachand

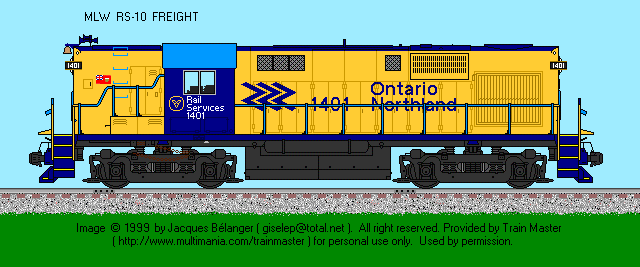

New: 26 March 2005 Drawing by: Jacques Belanger
-
Engine Builder: Dominion Engineering Works Engine: 4-cycle Model 244G V12
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1000 / 400
Main Generator: GE - 581 Horsepower: 1600
Gear Ratio: 74:18 Speed: 65 mph
Trucks: 4-Wheel Configuration: B-B
Traction Motor Blowers: Mechanical Driven (2) Model: Stuart
Weight: 229,000 lbs Traction Motors: GE 752 (four)
Tractive Effort (starting) 60,000 lbs @ 25% Tractive Effort (continuous): 44,000 lbs @ 10 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GE GMG139 Alternator: not applicable
Air Brake: Westinghouse Model: 24L
Compressor: Westinghouse Model: 3CDC
Boiler Type: -- PSI: --
Quantity Built: 128 Dates: 12/1954 to 2/1957
- -
Exterior Dimensions RS-2
Total Length 56'-11"
Pilot to Pilot 47'-09"
Wheel Diameter 40"
Truck Wheel Base 8'-06"
Height to Top Engine Hood 14'-09"
Height to Top Cab Hood 15'-04"
Cab Width 10'-00"
Top Walkway Width 9'-02"
Walkway Width 5'-00"
Engine Hood Width 5'-05"
Center Bolster 30'-00"
Center Front Truck to Front Pilot 10'-06"
Center Rear Tucrk to Rear Pilot 11'-00"
Distance between Truck Centers 39'-10"
Minimum Turning Radious 21 degrees / 21 degrees
- -
Fuel Oil: 1200 Lubricating Oil: 166
Engine Cooling Water: 200 Sand Capacity: 28 cu. ft.
Options:
  • Fully Automatic Transition
  • Four-Speed Governor Control
  • Light-Swing Bolster (mt-5050)
  • Steam Boiler (1600 lbs./hr)
  • Auxiliary Generator Trainline
  • Snow plow Electrical Connection
  • Combination Pilot and Footboard
