General Electric SL144 |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 1 July 2005 |

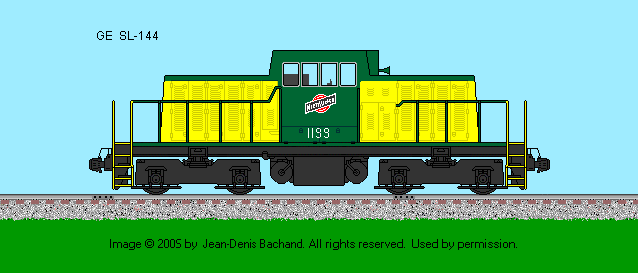

Drawing by: Jean-Denis Bachand |
| - |
Engine Builder: Cummins Engine
| Engine: Two 4-cycle Model KTA-1150L |
| Bore & Stroke |
5" X 6.5" |
| RPM (Maximum / Minimum) |
2100 / 650 |
| Main Generator: (Two) GT-5603 |
Horsepower: 1100 |
| Gear Ratio: -- |
Speed: 35 mph |
| Trucks: 4-Wheel (AAR-B) |
Configuration: B-B |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: ? |
| Weight: 219,000 lbs |
Traction Motors: GE 761 (Four) |
| Tractive Effort (starting) 86,400 lbs @ 30% |
Tractive Effort (continuous): 61,500 lbs @ 5 mph |
| Multiple Unit Capability: No |
Dynamic Braking: No |
| Auxilary Generator: -- |
Alternator: -- |
| Air Brake: Westinghouse |
Model: 26NL |
| Air Compressor: - |
Model: - |
| Quantity Built: 29
|
Dates: 8/1974 to Present |
| - |
- |
| Exterior Dimensions
| SL144 |
| Total Length |
45'-00" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
9'-06" |
| Height to Top Engine Hood |
10'-6" |
| Height to Top Cab Hood |
13'-03" |
| Cab Width |
9'-06" |
| Hood Width |
9'-06" |
| Height of Walkway |
5'-06" |
| Width of Walkway |
5'-00" |
| Leading Edge Front Truck to Front Pilot |
0'-06" |
| Trailing Edge Rear Truck to Rear Pilot |
0'-06" |
| Center Front Truck to Center Rear Truck |
29'-09" |
| Center Bolster |
22'-00" |
| Minimum Turning Radious |
29 degrees |
| -
| - |
| Fuel Oil: 700 gallons
| Lubricating Oil: 30 gallons |
| Engine Cooling Water: 40 gallons
| Sand Capacity: 16 cu. ft. |
| Options:
|
Reference Sources:
- GE Advanced Generation, 1989, by James W. Kerr
- GE Locomotives, volumes 1 & 2, 1981, by James W. Kerr
- Car & Locomotive Cyclopedia, 1984, by Simmons & Boardman
- The Modern Locomotive Handbook, 1979, Railway Fuel & Operating Officers Assn.
- Diesel & Electric Locomotive Specifications, 1981, by F. K. Hudson.
- GE Advanced Generation, 1989, by James W. Kerr
|
