General Electric 4500-hp Turbine

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND

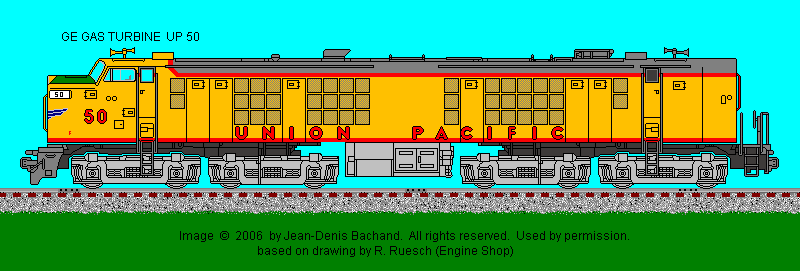

New: 28 January 2006 Drawing by: Jean-Denis Bachand
-
Engine Builder: General Electric Engine: 15-stage Turbine
Bore & Stroke N/A
RPM (Maximum / Minimum) 6900 / 4700
Main Generator: GE - GT576C1 Horsepower: 4500 / 3800
Gear Ratio: 74:18 Speed: 70 mph
Trucks: 4-Wheel Configuration: B-B + B-B
Traction Motor Blowers: Mechanical Driven (4) Model: ?
Weight:551,720 lbs Traction Motors: GE 752 E1 (eight)
Tractive Effort (starting) 137,930 lbs @ 25% Tractive Effort (continuous): 105,000 lbs @ 12.9 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GY 27 Alternator: GY27
Air Brake: Westinghouse Model: 24L
Air Compressor: Westinghouse Model: 3CDC
Quantity Built: 10 Dates: 1/1952 to 8/1952
- -
Exterior Dimensions Gas 4500-hp Turbine
Total Length 83'-06.5"
Wheel Diameter 40"
Truck Wheel Base 9'-04"
Height to Top Engine Hood 15'-05.5"
Height to Top Cab Hood 14'-05.5"
Cab Width 10'-07.5"
Hood Width 10'-00"
Top of Walkway N/A
Width of Walkway N/A
Center Bolster 41'-06"
Leading Edge Front Truck to Front Pilot 7'-08.5"
Trailing Edge Rear Truck to Rear Pilot 4'-09.5"
Center of Lead Truck to Center of Trailing Truck 68'-01"
Minimum Turning Radious 21 degrees
- -
Fuel Oil: 7200 gallons Lubricating Oil: 300 gallons
Engine Cooling Water: 145 gallons Sand Capacity: 37 cu. ft.
Options:
Reference Sources:
  • GE Locomotives, volumes 1 & 2, 1981, by James W. Kerr
  • Car & Locomotive Cyclopedia, 1984, by Simmons & Boardman
  • Giants of the West, 1981, George R. Cockle.
  • Diesel & Electric Locomotive Specifications, 1981, by F. K. Hudson.
  • GE Advanced Generation, 1989, by James W. Kerr
