GE's 100 / 110-ton Center Cabs

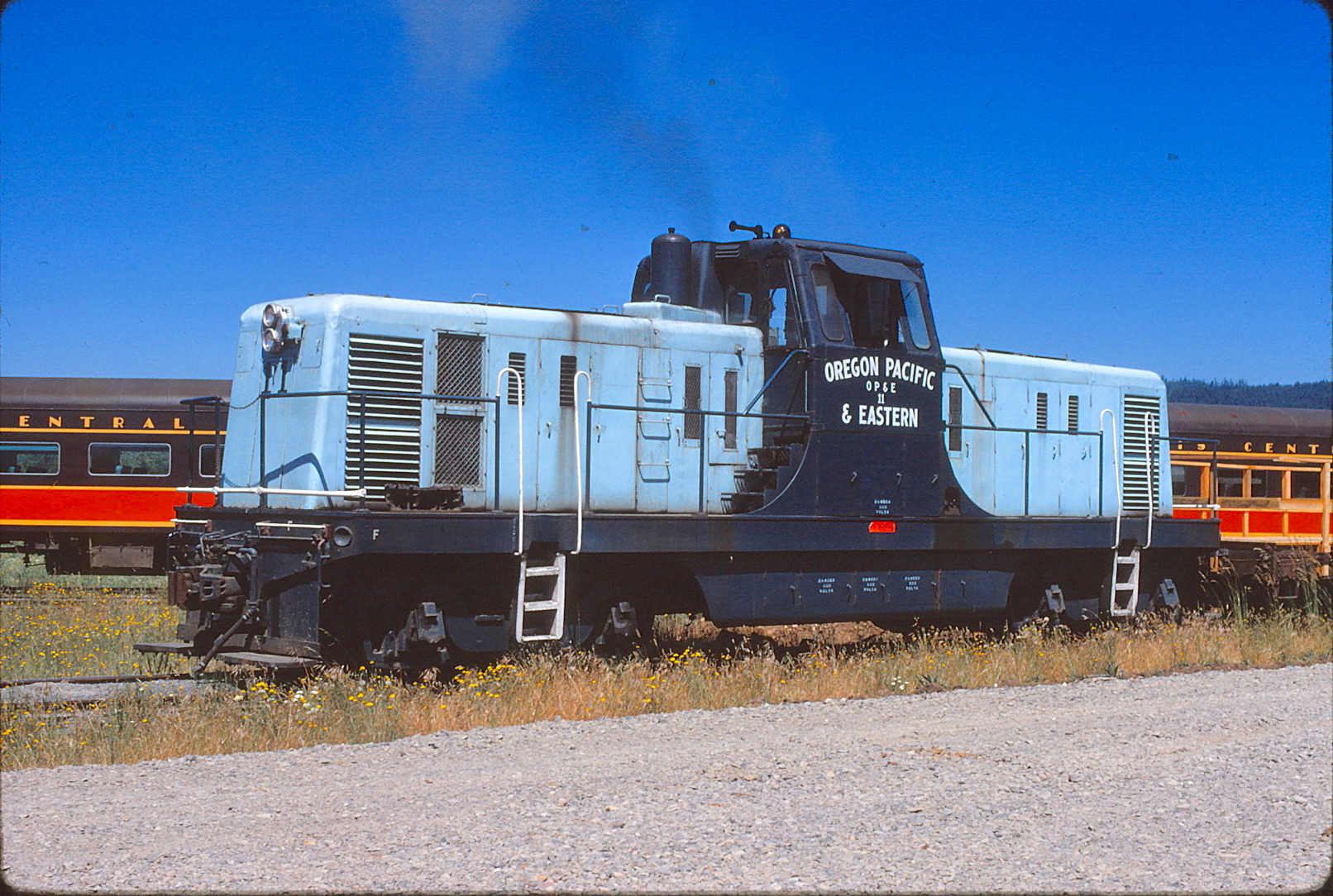

Oregon Pacific & Eastern at Cottage Grove, Oregon on 28 June 1972 (Jim Herold photo **)

The first of General electric's 100/110-ton diesel-electric center cab models appeared in the fall of 1940. The large center cab locomotive was a non-catalog item and custom-ordered by Monogahela Connecting; the railroad had been among a number of manufacturers seeking a switch engine capable of handling a wide-range of heavy-duty industrial chores. The loco was later sold to Oregon Pacific & Eastern (#11) and again to US Steel (#2606).

A dozen years passed before GE built the next iteration of the 100/110-tonner; it was very similar in appearance to GE's 80-ton model being produced in 1946, but a few inches longer. Production of the 110-ton version began in 1963.

In addition to Ford's heavy-weight center cabs, GE constructed seven 115/126-ton center cabs for the Monongahela Connecting RR between 1937 and 1941. A final batch of 100/128-tonners were built by the Erie locomotive builder prior to the close of WWII; one went to Bingham & Garfield (Kennecot Copper), one worked for National Supply and the remaining two joined the MCRR fleet. The styling on all of these custom-built locos was conventional in appearance, sans streamlining.

The mid-1960s saw GE produce two additional 125-ton center cabs for Georgia Power Company. They loosely resembled a pair of 70-tonners that had been spliced back to back on a single frame.

XXXX A Photo Review

Spotting Features

Oregon Pacific & Eastern #11 (ex-Monogahela Connecting 1001)

Cottage Grove, Oregon on 28 June 1972 (Jim Herold photo **)

Craig Walker

100-Tonner (Introduced in 1940)
  1. Produced 1940-1943
  2. Tall angular cab
  3. No shutters at front of long hoods
  4. Shutter on side of long hoods
  5. Two large cab windows above hoods
  6. Small walkway at front and rear

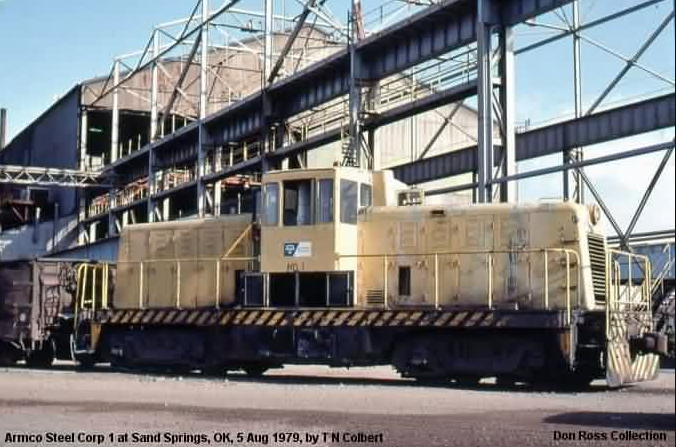

Armco Steel Corporation #1

Sand Springs, Ok on 5 August 1979 (TN Colbert photo) / Don Ross coll.)

Craig Walker

100 /110-Tonner (Introduced in 1958)

  1. Produced 1946-1958
  2. Simlar to 80-ton models, but slightly longer frame
  3. Radiator shutters at front of long hoods
  4. No air compressor box on walkway
  5. Two medium-sized cab windows above long hoods
  6. Small walkway at front and rear

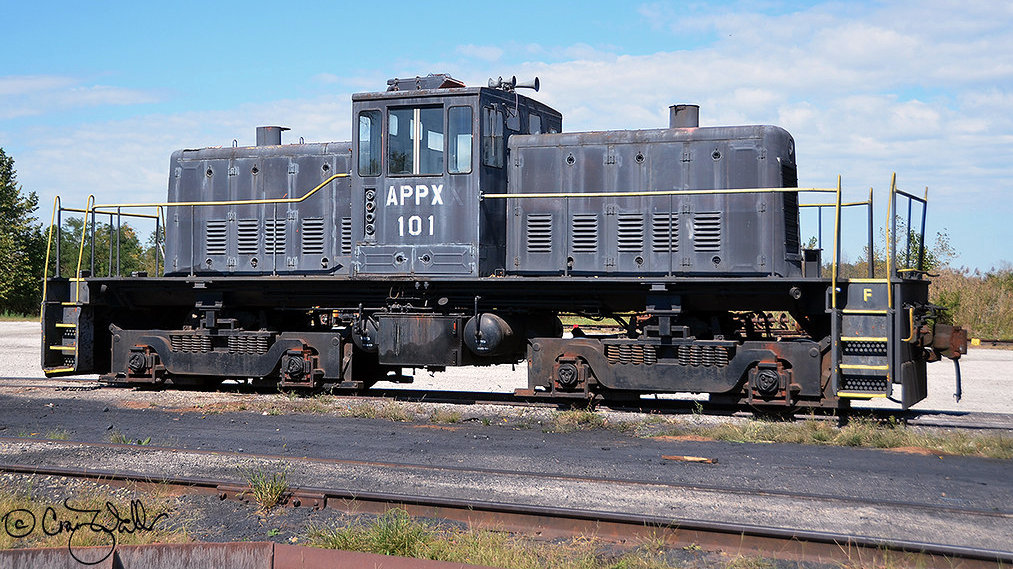

Appalachian Rail Car Seervice #101

Shelburn, Indiana on 29 September 2017 (Craig Walker photo)

Craig Walker

Narrow hood 100/110-Ton (Introduced in 1958)
  1. Produced 1958 to 1974
  2. Narrow hoods
  3. Radiator shutter at both ends
  4. Standard switcher truck with 8 or 9 coiled springs
  5. Large walkway at front and rear

Virginia Power #6070

Richmond, Virginia on 2 June 2005 (xxxxxx photo)


SL100/110 (Introduced in 1974)
  1. Produced 1974 to Present
  2. Slightly angular cab
  3. Large windows on all sides of cab
  4. Narrow hoods
  5. Recessed radiator shutter at both ends
  6. Non-standard switcher trucks
  7. Large walkway at front and rear
Reference sources:
  • Don Strack's UtahRails.Net (website)
  • Critters, Dinkys and Centercabs
  • Second Diesel Spotters Guide by Jerry Pinkepank
  • The Diesel Shop (website) - GE Production Rosters

** Photo from R. Craig collection
