General Electric C39-8

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND

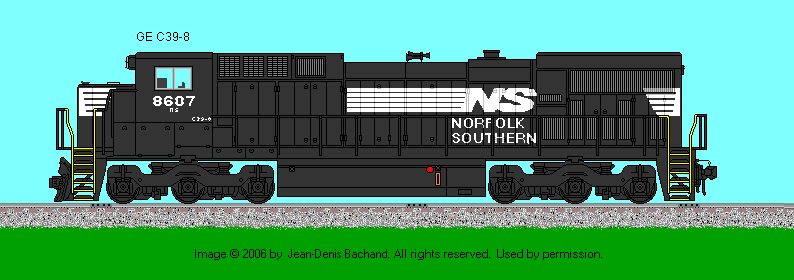

New: 15 January 2006 Drawing by: Jean-Denis Bachand
-
Engine Builder: General Electric Engine: 4-cycle Model 12FDL
Bore & Stroke 9" X 10.5"
RPM (Maximum / Minimum) 1000 / 400
Main Generator: GE - GMG187 Horsepower: 3600
Gear Ratio: 83:20 Speed: 70 mph
Trucks: 6-Wheel Configuration: Hi-Adhesion C-C
Traction Motor Blowers: Mechanical Driven (1) Model: ?
Weight: 366,600 lbs Traction Motors: GE 752 (Six)
Tractive Effort (starting) 106,790 lbs @ 10.9 mph Tractive Effort (continuous): 92,750 lbs @ 25% adhesion
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: GY 27 Alternator: GY27
Air Brake: Westinghouse Model: 26L
Air Compressor: Westinghouse Model: 3CDC
Quantity Built: 12 Dates: 5/1984 to 6/1984
- -
Exterior Dimensions C30-8
Total Length 70'-08"
Wheel Diameter 40"
Truck Wheel Base 13'-07"
Height to Top Engine Hood 15'-02.5"
Height to Top Cab Hood 15'-04.5"
Cab Width 10'-03.5"
Hood Width 8'-10"
Top of Walkway 9'-01.5"
Width of Walkway 5'-00"
Center Bolster 43'-04"
Leading Edge Front Truck to Front Pilot 1'-07.5"
Trailing Edge Rear Truck to Rear Pilot 1'-07.5"
Center of Lead Truck to Center of Trailing Truck 56'-09"
Minimum Turning Radious 21 degrees
- -
Fuel Oil: 4600 gallons Lubricating Oil: 400 gallons
Engine Cooling Water: 400 gallons Sand Capacity: 40 cu. ft.
Options:
Reference Sources:
  • GE Advanced Generation, 1989, by James W. Kerr
  • GE Locomotives, volumes 1 & 2, 1981, by James W. Kerr
  • Car & Locomotive Cyclopedia, 1984, by Simmons & Boardman
  • The Modern Locomotive Handbook, 1979, Railway Fuel & Operating Officers Assn.
  • Diesel & Electric Locomotive Specifications, 1981, by F. K. Hudson.
  • GE Advanced Generation, 1989, by James W. Kerr
