MLW S-10 (DL066)

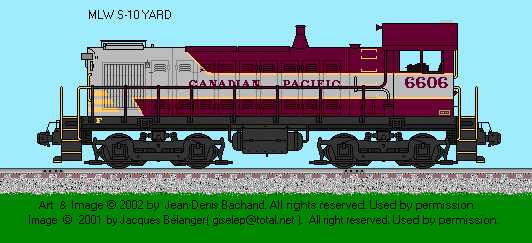

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
New: 6 May 2005 Drawing by: Jean-Denis Bachand
-
Engine Builder: Dominion Engineering Works Engine: 4-cycle Model 539 6L
Bore & Stroke 12" X 13.5"
RPM (Maximum / Minimum) 740 / 315
Main Generator: GE - GT552 Horsepower: 660
Gear Ratio: 75:16 Speed: 60 mph
Trucks: 4-Wheel Configuration: B-B
Traction Motor Blowers: Mechanical Driven (2) Model: ?
Weight: 232,000 lbs Traction Motors: GE 731 (four)
Tractive Effort (starting) 47,000 lbs @ 25% Tractive Effort (continuous): 34,000 lbs @ 5 mph
Multiple Unit Capability: Yes Dynamic Braking: No
Auxilary Generator: GE GMC139 PA3 Alternator: --
Air Brake: Westinghouse Model: 6SL
Compressor: Westinghouse Model: 3CD
Quantity Built: 13 Dates: 1/1958 to 6/1958
- -
Exterior Dimensions S-10
Total Length 45'-05"
Pilot to Pilot 37'-00"
Wheel Diameter 40"
Truck Wheel Base 8'-00"
Height to Top Engine Hood 12'-02"
Height to Top Cab Hood 14'-06"
Cab Width 10'-00"
Top Walkway Width 8'-02"
Walkway Width 5'-00"
Engine Hood Width 9'-11"
Center Bolster 22'-06"
Center Front Truck to Front Pilot 7'-06"
Center Rear Tucrk to Rear Pilot 7'-00"
Distance between Truck Centers 30'-06"
Minimum Turning Radious 50 degrees
- -
Fuel Oil: 635 Lubricating Oil: 140
Engine Cooling Water: 110 Sand Capacity: 26 cu. ft.
Options: Dynamic Brakes
  • Air Signal Lines
  • Hump Control
  • Low MPH Control
  • Comination pilot with footboard
Reference Sources:
  • Canadian National Data Book
  • MLW Design Data
