MLW S-11 (DL406) |
 |
| Data Sheet Information Compiled by: JEAN-DENIS BACHAND |
| New: 6 May 2005 |

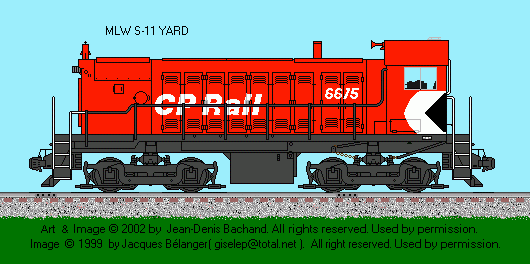

Drawing by: Jean-Denis Bachand |
| - |
| Engine Builder: Dominion Engineering Works |
Engine: 4-cycle Model 539 6L |
| Bore & Stroke |
12" X 13.5" |
| RPM (Maximum / Minimum) |
740 / 315 |
| Main Generator: GE - GT552 |
Horsepower: 600 |
| Gear Ratio: 75:16 |
Speed: 60 mph |
| Trucks: 4-Wheel |
Configuration: B-B |
| Traction Motor Blowers: Mechanical Driven (2) |
Model: ? |
| Weight: 233,000 lbs |
Traction Motors: GE 731 (four) |
| Tractive Effort (starting) 57,500 lbs @ 25% |
Tractive Effort (continuous): 36,000 lbs @ 5 mph |
| Multiple Unit Capability: Yes |
Dynamic Braking: No |
| Auxilary Generator: GE GMG490 |
Alternator: -- |
| Air Brake: Westinghouse |
Model: 6SL |
| Compressor: Westinghouse |
Model: 3CD |
| Quantity Built: 10
|
Dates: 6/1959 to 7/1959 |
| - |
- |
| Exterior Dimensions
| S-11 |
| Total Length |
46'-03" |
| Pilot to Pilot |
37'-03" |
| Wheel Diameter |
40" |
| Truck Wheel Base |
8'-00" |
| Height to Top Engine Hood |
12'-08" |
| Height to Top Cab Hood |
15'-02" |
| Cab Width |
10'-01" |
| Top Walkway Width |
7'-09" |
| Walkway Width |
5'-01" |
| Engine Hood Width |
9'-11" |
| Center Bolster |
22'-03" |
| Center Front Truck to Front Pilot |
7'-06" |
| Center Rear Tucrk to Rear Pilot |
7'-06" |
| Distance between Truck Centers |
30'-03" |
| Minimum Turning Radious |
50 degrees |
| -
| - |
| Fuel Oil: 600
| Lubricating Oil: 120 |
| Engine Cooling Water: 92
| Sand Capacity: 27 cu. ft. |
Options: Dynamic Brakes
- Air Signal Lines
- Hump Control
- Low MPH Control
- Comination pilot with footboard
|
Reference Sources:
- Canadian Pacific Data Book
- MLW Design Data
|
