EMD SD9

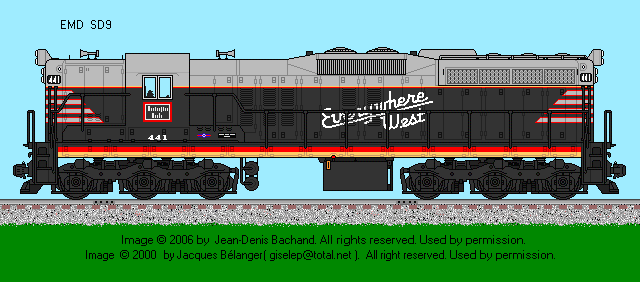

Somebody's Large Digital Image Here
Data Sheet Information Compiled by: JEAN-DENIS BACHAND
Revised: 15 August 2006  Artwork by: Jean-Denis Bachand
-
Engine Builder: EMD Engine: 567C 16 cylinder
Bore & Stroke 8.5" X 10"
RPM (Maximum / Minimum) 835 / 275
Main Generator: GM - D22 Horsepower: 1750
Gear Ratio: 62:15 Speed: 65 mph
Trucks: 6-Wheel Configuration: C-C
Traction Motor Blowers: Electrical Drive (4) Model: Delco
Weight: 360,000 lbs Traction Motors: Six GM - D47
Tractive Effort (starting) 90,800 lbs @25% Tractive Effort (continuous): 75,000 lbs @ 9.3 mph
Multiple Unit Capability: Yes Dynamic Braking: Yes
Auxilary Generator: Delco A8102 Alternator: GMD14
Air Brake: Westinghouse Model: 24RL
Compressor: Gardner-Denver Model: WBO
Quantity Built: 471 Dates: 1/1954 to 6/1959
- -
Exterior Dimensions SD9
Total Length 60'-08.5"
Wheel Diameter 40"
Truck Wheel Base 13'-07"
Height to Top Engine Hood 13'-10.5"
Height to Top Cab 15'-00"
Cab Width 10'-00"
Top of Walkway 4'-08.5"
Engine Hood Width 7'-00"
Distance between Truck Centers 35'-00"
Wheel Base (locomotive) 48'-07"
Minimum Turning Radious 57 degrees
- -
Fuel Oil: 2400 Lubricating Oil: 200
Engine Cooling Water: 260 Sand Capacity: 50 cu. ft.
Options: Vapor-Clarkson Steam Boiler OK4625
-
Reference Sources:
  • Diesel Locomtoives, Vol.2, by Bob Hayden
  • Illustrated Treasury of GM Locomotives, by James W. Kerr
  • Diesel Locomotives, The First 50 Years by Louis A. Marre
  • The Second Diesel Spotter's Guide, by Jerry A. Pinkepank
  • "Early Diesel and Electric Locomotives," Rail Heritage Publications
  • Diesel & Electric Locomotive Specificiations, 1981 by F.K. Hudson
  • Train Shed Cyclopedia, Vol. 20, 58, 60, 64, 80
