Detroit River Rail Legacies

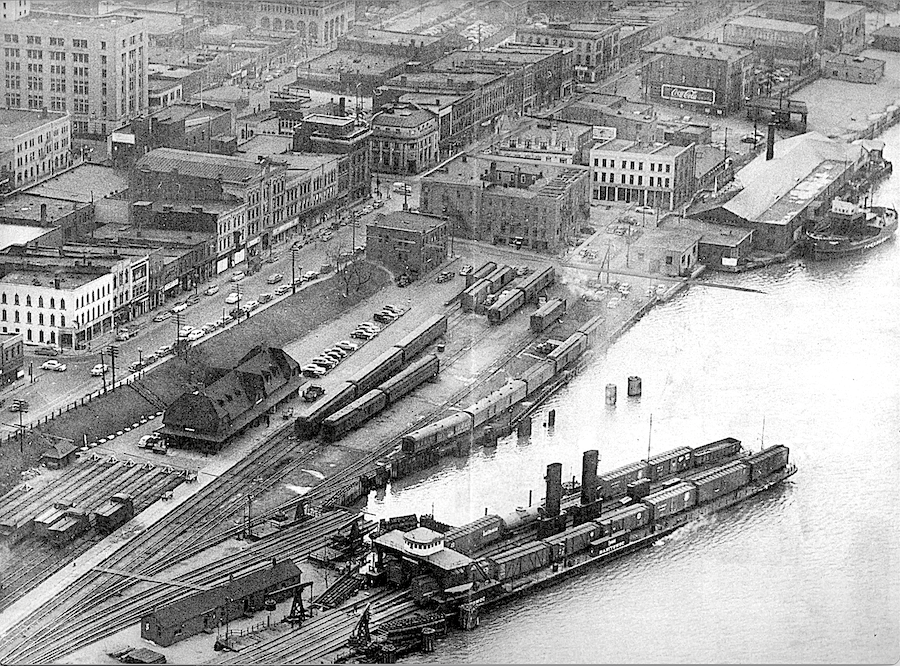

Post WWII photo of Canadian National's boat docks and passenger station in Windsor.
The 32-mile long Detroit River was and remains one of the busiest shipping lanes in the world, and for 130 years, cross-river rail ferry traffic played a major role in the socio-economic growth of the lower Great Lakes region, particularly between Detroit, Michigan and neighbor Windsor, Ontario. Because of their utilitarian appearance, the river rail ferry drew far less public attention than the big historic steam-driven boats that plied the water of Lake Michigan, i.e. S.S.Badger and S.S. Milwaukee Clipper. However, the importance of the river ferries was not diminished.
Great Western Railroad of Canada (fore-runner of the Canadian National) was the initial operator of Detroit River rail ferry service, and it was not by coincidence that the first rail ferry was named "Great Western." The 220-footer was built in Scotland, knocked-down and placed into kits with re-assembly taking place in Port Edward, Ontario in 1866. At the time, the vessel was lagest steel/iron-hulled boat on the Great Lakes. The side-wheeler ferry worked originally between Port Huron, MI and Sarnia, Ontario before being transferred to the Detroit-Windsor route. (Photo right depicts Canadian Natioanl's Lansdowne which was built in 1884.)
By 1900, Port Huron-Sarnia and Detroit-Windsor rail ferry service was being operated by several other railroads, including Canadian Pacific, Grand Trunk Western, Michigan Central and Pere Marquette.

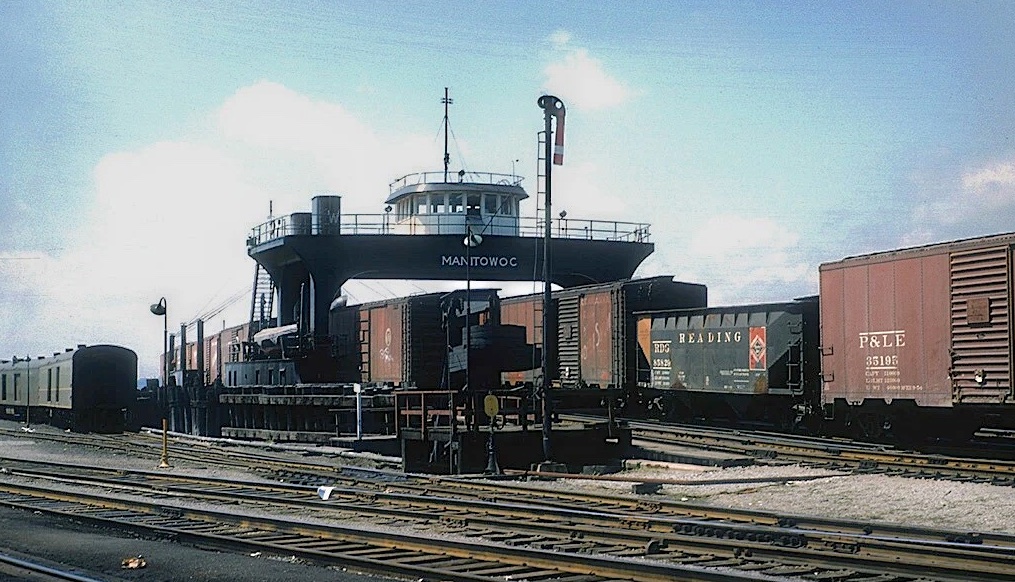

With the opening of CN's Port Huron Tunnel in 1891 and Michigan Central's Detroit River Tunnel in 1906, the two railroads gradually sold their ferry interests to the GTW and the Wabash RR respectively. Although specific numbers are not readily available, it is generally accepted that rail ferries collectively transported an enormous volume of freight tonnage and millions of passengers between the east and west banks of the river. (Photo: Tom Rock was dockside on August 13, 1956 to watch the arrival and unloading of the Wabash railroad's 26-year-old Manitowoc.)
Fourteen different rail ferries had been operated by railroads from the mid 1800s until the 1990s;they included both side-wheeler and propellar-driven vessels. Those 14 ferries are briefly outlined in the table at the bottom of this webpage. Although many of the steel or wooden-hull boats had a rich history, the two most notable arguably were the Grand Trunks's International which was the first propeller-driven ferry on the river, along with GT's Huron which navigated the waters between Michigan and Ontario for 95 years.
Historically, January 15th had marked the official closing of the Great Lakes shipping season; and it would be re-opened typically ten weeks later on March 25th (or 24th if the winter had been mild). During the shutdown, the large lake freighters were repaired and readied for the long upcoming season; likewise the SOO Locks would undergo major repairs, along with any defered maintenance. But down on the Detroit River, area railroads continued to move passenger and freight traffic between Michigan and Ontario thanks to the durable, dependable rail ferries. (The adjacent photo comes from the collection of Tom Rock)
Interestingly, the the present-day Norfolk Southern was the last railroad to operate ferry service on the River; it did so in 1994. NS had inherited the operation from one-time predecessor Wabash.

General Note: Black & white photos are from the collection of Tom Rock / Detroit Marine Historical Society

Detroit River Rail Car Ferries

Compiled by: R. Craig (1 March 2024)
Vessel RR Owner(s) Builder, Location (date)
  • Length / width
  • Capacity
Type of Power Notes

Great Western
  • Great Western Rwy of Canada (1866-c.1906)
  • Grand Trunk Western (c. 1906-1923)
  • Pine Ridge Navigation (1939 - 1941)
Henry H. Jenkins (1866) 220 ft X 40 ft Side-wheeler Built in Glascow, Scotland, "knocked-down" & re-assembled (Port Edward, Ont.)

International
  • Grand Trunk (1872-1898)
  • Lake Erie & Detroit River Railway (1898-1904)
  • Pere Marquette (1904 - 1934)
  • Several (1934-1968)
GTW; Fort Erie. Ont. (1872) 210 ft X 40 ft Propeller First propeller-driven ferry on Great Lakes; converted to barge in 1934; scrapped 1968
Notes: Built in Great Britan by Palmer & Co., "knocked-down" & re-assembled by GTW

Huron
  • Great Western Rwy of Canada(1872-1888)
  • Grand Trunk Wsn (18 88-1981)
Assembled at Port Edward, Ont.
  • 240 ft X 44 ft
  • 16
Side-wheeler Sank in 1981
Built in Scotland, "knocked-down" & re-assembled at Port Edwards, Ont.; conveyed to GTW thru merger in 1882;

Transport
  • Canadian Southern (1880-1890)
  • Canada Bridge Co. (1890-1898)
  • Michigan Central (1898-1913)
  • Wabash (1913-1933)
Detroit Dry Dock Company, Wyandotte, MI
  • 254 ft X 46 ft
  • 21
Side-Wheeler; (2 engines) Sold and lost in 1942 storm

Lansdowne
  • Grand Trunk (1884-1923)
  • Canadian National (1923-1977)
  • Others (1977-2016)
Detroit Dry Dock, Wyandotte, MI.
  • 294 ft X 44 ft
  • 16
Side-wheeler; 1360 hp (two engines) Retired in 1970; converted to barge; converted to floating restaurant in 1981; scrapped 2016

Michigan Central
    Michigan Central (1884-1913)
  • Kelleys Island Lime & Transport (1913-1923)
Detroit Dry Dock Company, Wyandotte, MI 263 ft X 46 ft
  • 21
    • Side-Wheeler; 1200-hp (2 engines); resold August 1923 to TL Durocher and convered to barge
    Converted to barge in 1923; sank in 1926

    Transfer
    • Michigan Central (1888-1912)
    • Wabash (1912-1938)
    • Pine Ridge Navigation (1938-1940)
    Cleveland Ship Building
    • 265 ft X 75 ft
    • 16
    Sid-wheeler Scrapped in Hamilton (1940)

    Ontario
    • Canadian Pacific Railway (1890-1924)
    • Newaygo Company )1924-1927
    Polson Iron Works at Owens Sound, Ont. 297 X 41 Side-Wheeler ? Converted to barge in 1924; sank in a storm in 1927

    Detroit
    • Michigan Central (1904-1912)
    • Wabash (1912-1964)
    • Norfolk & Western (1964-2009)
    Great Lakes Engineering Works
    • 296 ft X 64 ft
    • 24
    Propeller; 3600-hp (2 engines fore and 2 engines aft Rebuilt with 4 tracks (32-std car capacity); scrapped in 2009 by Dean Cpnst.

    Michigan Canadian Pacific Railway Built by F.W.Wheeler & Co. of Bay City, Michigan.(1890) 16 Paddle-Wheeler Sold in 1916; sank in a storm

    Pere Marquette 14
    • Pere Marquette (1904-1947)
    • Chesapeake & Ohio (1947-1957)
    Detroit Ship Building 327.5 ft X 52 ft Propeller Used in Port Huron-Sarnia service until transferred to Detroit River in 1905; scrapped in November 1957

    Manitowoc
      Wabash (1926-1964)
    • Norfolk & Western (1964-1994)
    Manitowoc Ship Building, WI 358 X 65 Propeller Converted to car float in 1969

    Windsor
    • Wabash (1930-1964)
    • Norfolk & Western (1964-1994?)
    Toledo Ship Building 358 X 65 Propeller Converted to barge in 1969; Sold to
    References:

  • Historical Collections of the Great Lakes; BGSU University Libraries
  • Tom Rock's railroad blog: Rock on Trains
  • Various on-line sources were used to research the vessels appearing in this overview.
  • Canadian Trackside Guide (by: Bytown Railway Society), Diesel Era Magazine, and X2200 South Locomotive Newsletter

    Contributors (direct and indirect): Ken Borg, Earl Minnis, Ken McCutheon, Geoff Elliott and Tom Rock
