Siemens Rail Systems

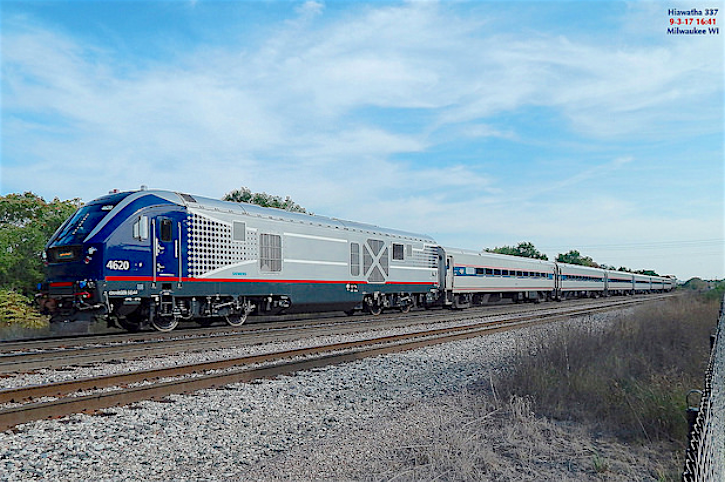

Ed Weisensel photo at Milwaukee, WI on 3 September 2017


* * * North American Rosters & Technical Data * * *


"City Sprinter" ACS-64 Rosters

Photo by Jim Kleeman


"Charger" SC-44 Rosters

Photo by Charles Freericks


ACS-64 Specifications

  • Catenary voltage: 25 kV 60 Hz
  • Voltage frequency: 60 Hz
  • Max. rated power: 6,400 kW
  • Continuous rated power: 5,000 Kw
  • Head-end power: 1000 KVA
  • Tractive Force (starting): 72,000 lbs
  • Wheel Arrangement: B-B Wheel Dia: 44"
  • Length: 66'-8" Width: 9'-8"
  • Height (w/o pantograph): 12'-6"
  • Distance between Truck Centers: 32'-06"
  • Minimum Turning Radius: 250 ft
  • M/U Capability: yes
  • Loco Wgt: 215,537 lbs.
  • Speed (max.): 125 mph

SC-44 Specifications
  • Engine: Cummins QSK95 V16
  • Horsepower: 4400
  • EPA Rating: Tier 4 Certified
  • Brakes: Dynamic, Re-generative
  • Head-end power: 1000 KVA
  • Tractive Force (starting): 65,000 lbs
  • Wheel Arrangement: B-B, Wheel Dia: 44"
  • Length: 71'-6"
  • Width: 10'-0"
  • Height: 12'-6"
  • Distance between Truck Centers: 32'-06"
  • Minimum Turning Radius: 250 ft
  • M/U Capability: yes
  • Fuel Capacity: 2200 gallons
  • Loco Wgt: 264,556 lbs.
  • Speed (max.): 125 mph
NOTES & CREDITS

* Height Dimensions are from top of railhead.

Reference Sources:

  • Siemens ACS-64 on-line brochure
  • Siemens SC-44 on-line brochure
  • Locomotive Magazine (2015 Annual)
  • Revised: 20 December 2019 (New: 27 June 2017)
